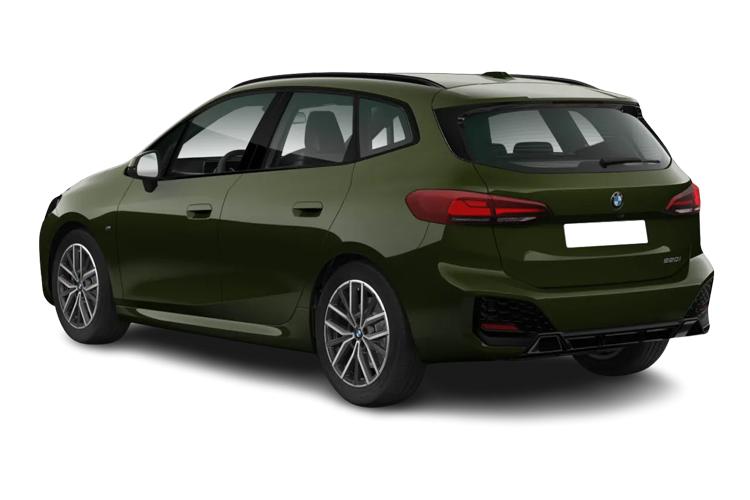

BMW 2 SERIES ACTIVE TOURER 225e xDrive Sport 5dr DCT [Tech Plus Pack] Lease Deals

Options

Standard Equipment

Technical Data

Active Guard
Attentiveness assist
Automatic powered tailgate
Automatic start/stop function
BMW Head up display
BMW Online services
BMW Operating system 9 with remote services and smartphone integration
BMW Teleservices
Brake pad wear indicator in front and rear
Condition based service
ConnectedDrive Services
Drive off assistant
Flat air vents on instrument panel in high gloss black, adjustable slats with elements in pearl chrome
iDrive controller
Instrument cluster with speedometer with miles per hour read out, tachometer and fuel gauge
Language version English
My mode efficient with range/consumption optimised setting of drivetrain, climate control, displays driving notes, personal, efficient, sport mode
On board computer - average speed+fuel consumption, service interval, clock/date, odometer/trip meter, outside temperature display and ice warning
Servotronic variable electric power steering (EPS)
Widescreen display

11kW AC charging
eDrive exterior sound
Gear selector switch with toggle operation
Mode 3 public charging cable
Performance Control
Petrol Particulate Filter
Standard suspension
Steptronic transmission with double clutch

1x USB Type C ports in rear centre console for charging
2x USB Type C ports in front centre console for charging and data transfer
DAB Digital radio
Personal eSim
Welcome sound upon opening of the front driver or passenger door

Automatic headlights
BMW emblem, engine compartment lid and tailgate

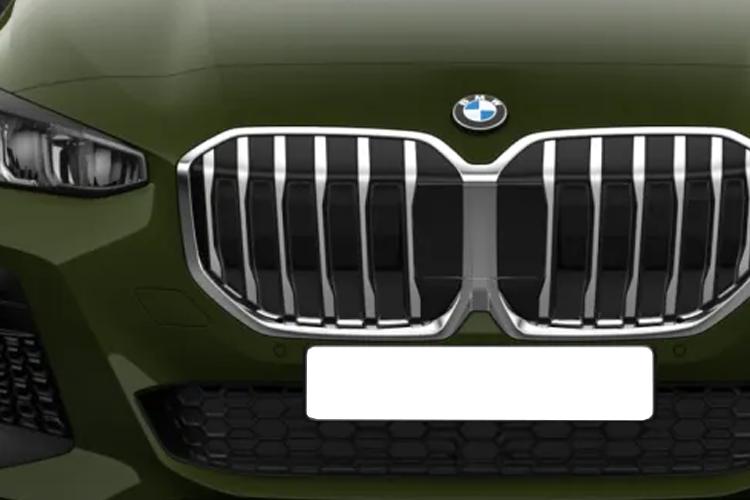

BMW radiator grille with grille struts, end face black high-gloss, radiator grille frame chrome high-gloss
Body colour sill covers
Body coloured door mirror caps
Contoured rear roof spoiler in vehicle colour with side aeroblades in black high-gloss
Dynamic brake lights
Electric adjustable heated door mirrors
Electric windows - front and rear, with open/close fingertip control, anti-trap facility and comfort closing
Folding door handles integrated flush with surface
Front and rear windscreen wipers with heated front washer nozzles
Front bumper cover with air inlet trims for air curtains in matt black
Front door exit lights
Heated rear window
Hidden exhaust pipe
High gloss shadow line
Home light
LED Daytime running lights and parking lights with turn indicators
LED number plate light
LED rear lights
LED third brake light in rear spoiler
M Roof rails high gloss shadowline
Manual headlight range control
Matt black roof strips
Rain sensor
Rear bumper cover with two L-shaped trims in Pearl chrome
Rear side wing doors
Shark fin antenna
Trailer stabilisation logic
Visible VIN plate
Welcome lighting
Window washer nozzle for rear view camera

12V socket in right side trim panel
2 bag hooks in luggage compartment
2 front reading lights
2 open cup holders in front centre console
2x 12V power socket in luggage compartment and front centre console
3 seat bench in 2nd row
40:20:40 split folding rear seat backrests
Additional under floor storage in luggage compartment
Ambient lighting front and rear
Automatic two zone climate control air conditioning
Bottle trays in all doors
Child seat ISOFIX attachment for two outer rear seats and front passenger seat with anchorage points
Embellishers on steering wheel spokes in pearl chrome
Footrest and pedals in black plastic
Four grab handles integrated in roof lining
Front and rear door pockets
Front and rear footwell lighting
Front and rear side armrest integrated into door trim
Front and rear velour floor mats in anthracite
Front armrest with integrated control panel
Front centre console storage compartment
Front head restraints
Glovebox with light
Heated front seats
Height adjustable 3 rear head restraints
Interior door handle recess light on all doors
Luggage compartment lighting on right side
Map pockets
Mechanical rear seats with fore/aft adjustment
Middle centre console storage compartment
Multi-function controls for steering wheel
One piece parcel shelf opens together with tailgate and removable
Rear cloth hooks
Single front passenger seat
Steering wheel column manual adjustment
Storage compartment lighting in centre console and storage tray in centre stack
Storage compartment net in left side trim panel
Storage compartment with folding cover under centre console armrest cushion
Sunvisors with illuminated vanity mirrors

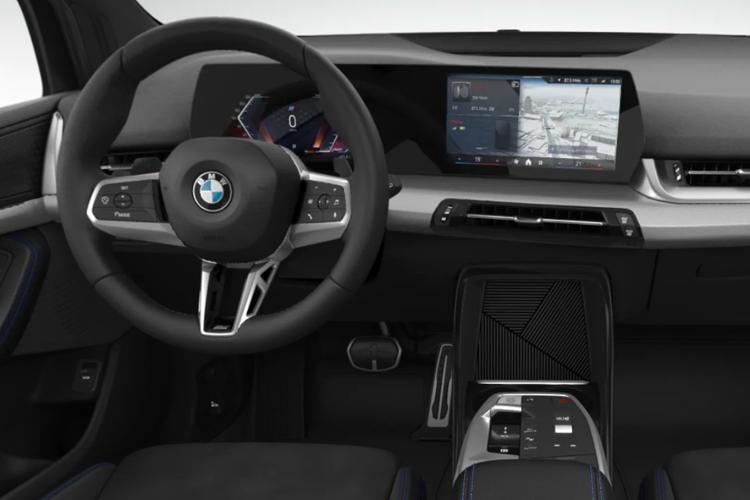

Three spoke sport leather steering wheel
Tilt adjustment incl. cargo function of 2nd row of seats

Technology plus pack - 2 Series Active Tourer

3 point seatbelts on all seats, front pyrotechnic belt tensioners, stopper and belt force limiters, rear coded belt buckles
Acoustic protection for pedestrians
Anti-lock braking system (ABS)
Automatic hold function
BMW emergency call
Brake drying
Braking readiness
Child proof locking system in rear door
Cornering brake control
Crash Sensor - activates hazard/interior lighting + unlocks doors
Driver and front passenger airbags
DSC - Dynamic Stability Control
Dynamic brake control
Dynamic Traction Control - DTC
Electromechanical parking brake
First aid kit
Front disc brakes
Front side airbags
Head airbags
Integrated braking system
PC iBrake PostCrash approach control warning with light braking function
Rear disc brakes
Tyre pressure monitoring system
Warning triangle

Anti theft alarm system
Closing system with central locking
Drive away door locking
Engine immobiliser
Locking wheel bolts

Front centre console trim in high gloss black

Reduced rolling resistance tyres
Tyre repair kit plus

Battery Capacity % guaranteed under warranty

Not Available
Battery Capacity in kWh

16.3
Battery Charging Scenario 1 - Charge Time (Mins)

495
Battery Charging Scenario 1 - Percentage Change

0-100
Battery Charging Scenario 1 - Power Supply - kW

2.3
Battery Charging Scenario 2 - Charge Time (Mins)

135
Battery Charging Scenario 2 - Percentage Change

0-100
Battery Charging Scenario 2 - Power Supply - kW

7.4
Battery Charging Scenario 3 - Charge Time (Mins)

105
Battery Charging Scenario 3 - Percentage Change

0-100
Battery Charging Scenario 3 - Power Supply - kW

11
Battery Charging Scenario 4 - Charge Time (Mins)

Not Available
Battery Charging Scenario 4 - Percentage Change

Not Available
Battery Charging Scenario 4 - Power Supply - kW

Not Available
Battery Leased

No
Battery Type

Lithium-ion
Charging Port Location

Left Side Front
Coupler/Connector Type

Type 2
Maximum Charging Rate - kW

11
Standard manufacturers Battery warranty - Mileage

62000
Standard manufacturers Battery warranty - Years

6
Usable Battery Capacity

14.2
WLTP - AER (km) - City

100
WLTP - AER (km) - Comb

84
WLTP - AER (miles) - City

62.1
WLTP - AER (miles) - Comb

52.2
WLTP - EC (kWh/100km) - City

14.8
WLTP - EC (kWh/100km) - Comb

17.3
WLTP - EC (kWh/100km) - Extra High

21.4
WLTP - EC (kWh/100km) - High

15.5
WLTP - EC (kWh/100km) - Low

15.5
WLTP - EC (kWh/100km) - Medium

14.5
WLTP - EC (miles/kWh) - City

4.2
WLTP - EC (miles/kWh) - Comb

3.6
WLTP - EC (miles/kWh) - Extra High

2.9
WLTP - EC (miles/kWh) - High

4
WLTP - EC (miles/kWh) - Low

4
WLTP - EC (miles/kWh) - Medium

4.3
WLTP - EC AC Ch Dep (kWh/100km) - Comb

18.3
WLTP - EC AC Ch Dep (miles/kWh) - Comb

3.4
WLTP - EC AC Weighted (kWh/100km) - Comb

11.5
WLTP - EC AC Weighted (kWh/100km) - Comb - TEH

11.7
WLTP - EC AC Weighted (kWh/100km) - Comb - TEL

11.5
WLTP - EC AC Weighted (miles/kWh) - Comb

5.4
WLTP - EC AC Weighted (miles/kWh) - Comb - TEH

5.3
WLTP - EC AC Weighted (miles/kWh) - Comb - TEL

5.4
WLTP - Equivalent AER (km) - City

101
WLTP - Equivalent AER (km) - Comb

86
WLTP - Equivalent AER (km) - Comb - TEH

82
WLTP - Equivalent AER (km) - Comb - TEL

86
WLTP - Equivalent AER (km) - Extra High

69
WLTP - Equivalent AER (km) - High

97
WLTP - Equivalent AER (km) - Low

97
WLTP - Equivalent AER (km) - Medium

103
WLTP - Equivalent AER (miles) - City

62.8
WLTP - Equivalent AER (miles) - Comb

53.4
WLTP - Equivalent AER (miles) - Comb - TEH

51
WLTP - Equivalent AER (miles) - Comb - TEL

53.4
WLTP - Equivalent AER (miles) - Extra High

42.9
WLTP - Equivalent AER (miles) - High

60.3
WLTP - Equivalent AER (miles) - Low

60.3
WLTP - Equivalent AER (miles) - Medium

64

CO

0.122
HC

0.008
HC+NOx

Not Available
Noise Level dB(A)

68
NOx

0.009
Particles

0.0004
Standard Emissions

EURO 6e-bis

End-of-Life Emissions - CO2e (Equivalent) - tonnes

0.6
In-Life Emissions - CO2e (Equivalent) - tonnes

11.1
Lifetime Emissions - CO2e (Equivalent) - tonnes

26.3
Production Emissions - CO2e (Equivalent) - tonnes

14.6

WLTP - CO2 Ch Sus (g/km) - Comb

133
WLTP - CO2 Ch Sus (g/km) - Comb - TEH

134
WLTP - CO2 Ch Sus (g/km) - Comb - TEL

129
WLTP - CO2 Ch Sus (g/km) - Extra High

144
WLTP - CO2 Ch Sus (g/km) - High

115
WLTP - CO2 Ch Sus (g/km) - Low

164
WLTP - CO2 Ch Sus (g/km) - Medium

122
WLTP - CO2 Charge Depleting (g/km) - Comb

19
WLTP - CO2 Weighted (g/km) - Comb

61
WLTP - CO2 Weighted (g/km) - Comb - TEH

65
WLTP - CO2 Weighted (g/km) - Comb - TEL

60

Camshaft

DOHC
Catalytic Convertor

Yes
CC

1499
Compression Ratio

11.1:1
Cylinder Layout

IN-LINE
Cylinders

3
Cylinders - Bore (mm)

82
Cylinders - Stroke (mm)

94.6
Engine Code

XB2231O0
Engine Layout

FRONT TRANSVERSE
Fuel Delivery

TURBO INJECTION
Gears

7 SPEED
Number of Valves

12
Transmission

AUTO

EC Directive 1999/100/EC Applies

No

WLTP - FC Ch Dep (l/100km) - Comb

0.1
WLTP - FC Ch Dep (mpg) - Comb

2824.8
WLTP - FC Ch Sus (l/100km) - Comb

5.9
WLTP - FC Ch Sus (l/100km) - Comb - TEH

5.9
WLTP - FC Ch Sus (l/100km) - Comb - TEL

5.7
WLTP - FC Ch Sus (l/100km) - Extra High

6.3
WLTP - FC Ch Sus (l/100km) - High

5.1
WLTP - FC Ch Sus (l/100km) - Low

7.2
WLTP - FC Ch Sus (l/100km) - Medium

5.4
WLTP - FC Ch Sus (mpg) - Comb

47.9
WLTP - FC Ch Sus (mpg) - Comb - TEH

47.9
WLTP - FC Ch Sus (mpg) - Comb - TEL

49.6
WLTP - FC Ch Sus (mpg) - Extra High

44.8
WLTP - FC Ch Sus (mpg) - High

55.4
WLTP - FC Ch Sus (mpg) - Low

39.2
WLTP - FC Ch Sus (mpg) - Medium

52.3
WLTP - FC Weighted (l/100km) - Comb

2.7
WLTP - FC Weighted (l/100km) - Comb - TEH

2.9
WLTP - FC Weighted (l/100km) - Comb - TEL

2.7
WLTP - FC Weighted (mpg) - Comb

104.6
WLTP - FC Weighted (mpg) - Comb - TEH

97.4
WLTP - FC Weighted (mpg) - Comb - TEL

104.6

Alternative Fuel Qualifying

Yes
Badge Engine CC

1.5
Badge Power

245
Based On ID

Not Available
Coin Description

e xDrive
Coin Series

Sport[Tech+ Pack]
Generation Mark

2
Insurance Group 1 - 50 Effective January 07

27E
NCAP Adult Occupant Protection %

88
NCAP Child Occupant Protection %

81
NCAP Overall Rating - Effective February 09

5
NCAP Pedestrian Protection %

79
NCAP Safety Assist %

92
Did at least one aspect of this vehicle's safety give cause for concern?

No
Special Edition

No
Special Order

No
Standard manufacturers warranty - Mileage

Unlimited
Standard manufacturers warranty - Years

3
Vehicle Homologation Class

M1

0 to 62 mph (secs)

6.7
Engine Power - BHP

245
Engine Power - KW

180
Engine Power - RPM

4400
Engine Torque - LBS.FT

352
Engine Torque - MKG

48.6
Engine Torque - NM

477
Engine Torque - RPM

1500
Top Speed

121

Emissions Test Cycle

WLTP
RDE Certification Level

RDE 2

Alloys?

Yes
Space Saver?

No
Tyre Size Front

205/60 R17
Tyre Size Rear

205/60 R17
Tyre Size Spare

TYRE REPAIR KIT
Wheel Style

STAR SPOKE STYLE 875
Wheel Type

17" ALLOY

Height

1570
Height (including roof rails)

Not Available
Length

4386
Wheelbase

2670
Width

1824
Width (including mirrors)

2102

Fuel Tank Capacity (Litres)

47
Gross Vehicle Weight

2405
Luggage Capacity (Seats Down)

1370
Luggage Capacity (Seats Up)

406
Max. Loading Weight

580
Max. Roof Load

75
Max. Towing Weight - Braked

1400
Max. Towing Weight - Unbraked

750
Minimum Kerbweight

1825
No. of Seats

5
Turning Circle - Kerb to Kerb

11.4

BMW 2 SERIES ACTIVE TOURER

Vehicle Information

Options

Standard Equipment

Technical Data

Specification

Personal Price

Fetching your price

Similar offers

MERCEDES-BENZ GLA HATCHBACK

ALFA ROMEO TONALE HATCHBACK SPECIAL EDITION

PEUGEOT 308 HATCHBACK
